Since I already had a mockup of the box, I decided to do a mockup of the slide.
Using a craft knife I cut a rising sun pattern.
It is definitely not perfect, but it gets the general idea across. The thinner wood (1/16″) is definitely easier to cut through, but unfortunately that threatens structural integrity a bit. It is also difficult to cut straight, but I think that can be improved with practice.
However, I am looking into using the laser cutter (I’ll show you guys my W.I.P.s down below).
I also added the color cellophane.
I think it’s a good start!
I still need to play around with what colors I have, I might try to look around to find more colors or combine the colors I have to make new ones (the orange I have in this is actually yellow and red together). I also need to find a better way to attach the cellophane. I used tape because that is all I had on hand, but it’s hard to not make it visible. I am going to try glue next time.
I am going to work hard to perfect it.
Slides Concept
For my slides, I decided to move forward with a four seasons theme for now. If it goes well and I have time, I hope to make another set of some other theme. I am planning to use the laser cutter, so hopefully that will give me the time.

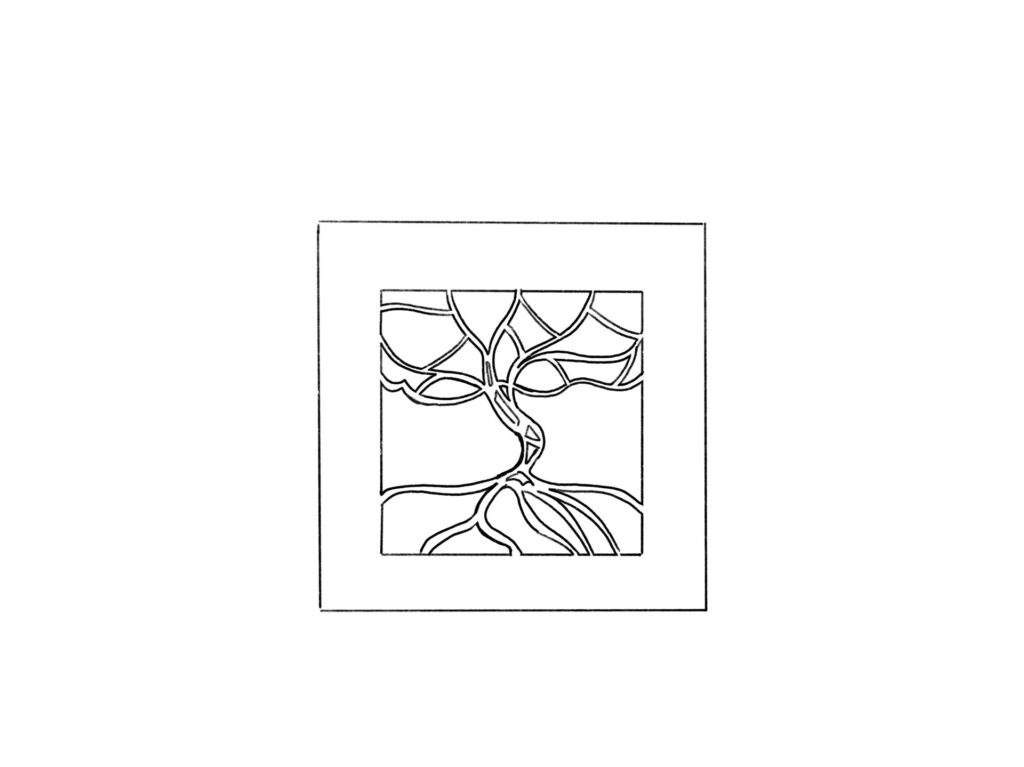

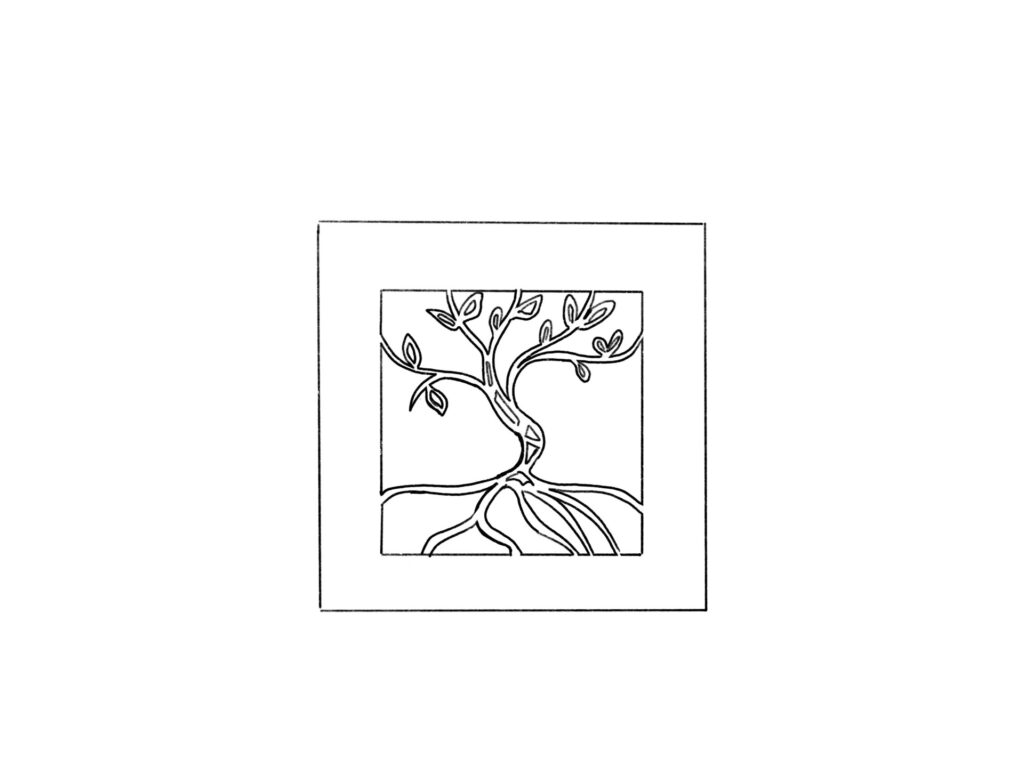

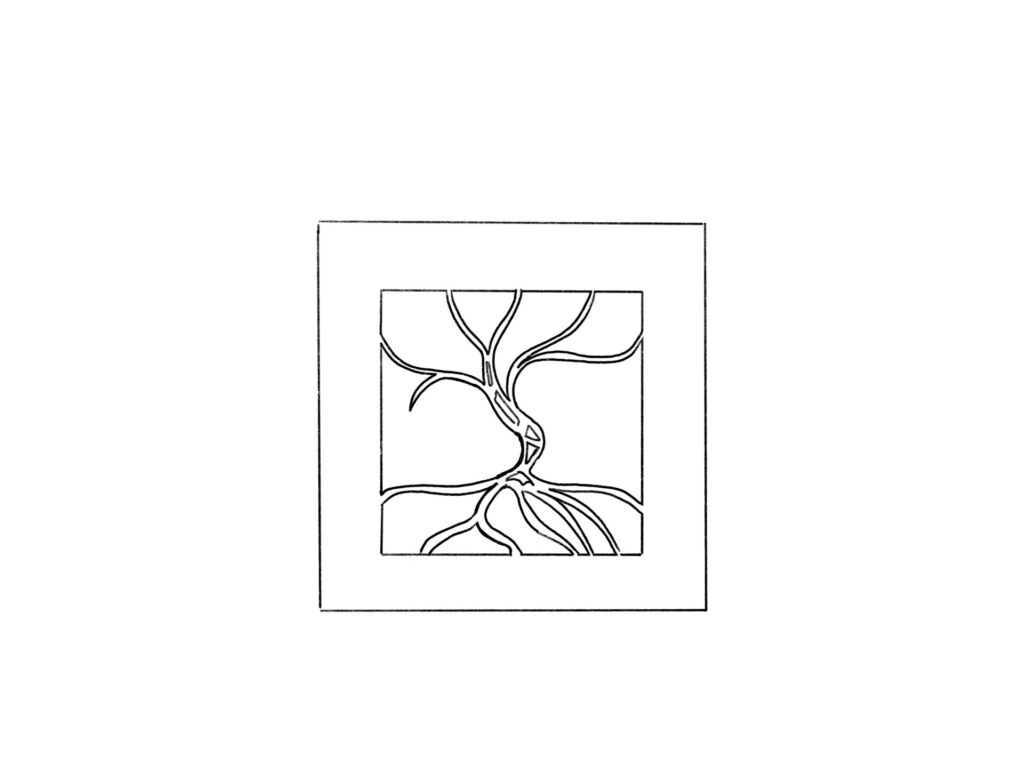

I have not made a file yet, but these are my sketches.
Tree 😀
Additional Update
While playing around with the lighting, I discovered that the projection only really works if the light is focused and on the smaller side. I tried using a larger, squarish light and the projection was just totally lost. Just straight light.
Therefore, my current plan for the lighting is to drill a 1 cm (diameter) hole in the center of the back panel and attack a light on the back. I have no reason to think this won’t work, but I will know for sure after this weekend.
Shopping List
- birch plywood (1/2″,1/4″,1/8″) – already owned, scrap wood
- wood glue – already owned
- wood stain – already owned
- acrylic paint – already owned
- birch plywood 1/4″ – not purchased yet (I need to decide on dimensions)
- 12 balsa wood sheets 6×6 – purchased
- cellophane 6×6 sheets, multicolored – purchased
- might order more
- glue – not purchased yet
- COB rechargeable keychain light – already owned
- wall hook (to hang the keychain light) – already owned
Tools
- wood saw
- craft knife
- scissors
- laser cutter
- drill
