For My Layers Project I originally was going to just make a wheel, but I decided to go beyond that and make a whole model of a motorcycle. One thing I would like feedback on is if I should make the rear of the frame more realistic? It will pose a few technical challenges but may make for a more realistic looking model.

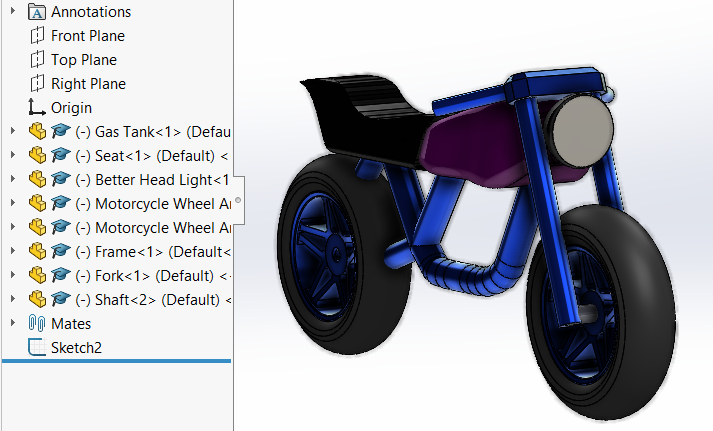

I updated the design to be more realistic and have rotateable wheels. To do this I incorperated 3D printed shafts and a wheel stand.

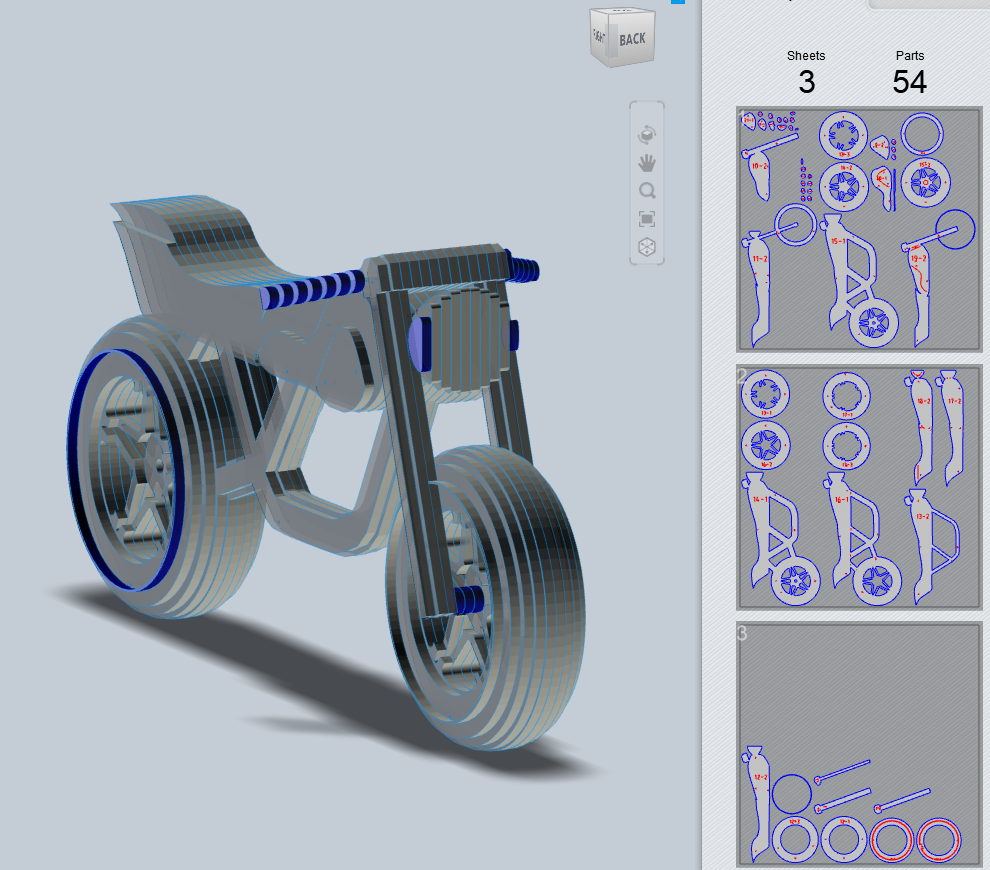

I was having issues slicing the model to be perfectly symetrical as it was a function of material thickness and the width of the model at different locations. To remedy this I cut the model in half in solidworks and then imported it into the slicer.

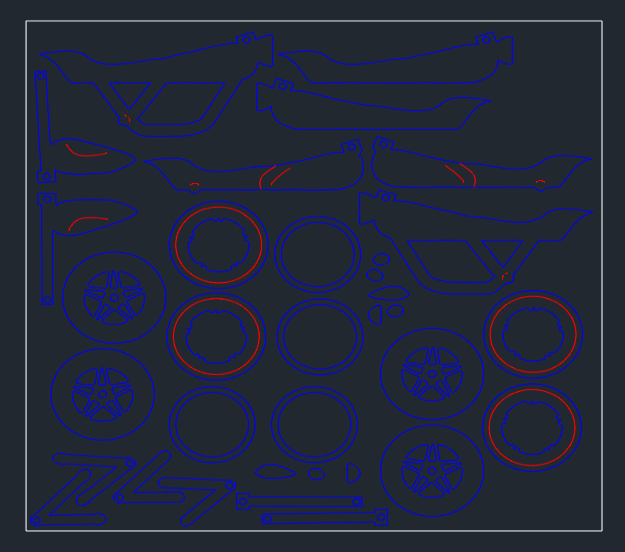

The slicer gave me a dxf file that I opened in autoCAD that I cleaned up and colored, I then created a mirored version of it and nested them all together to be cut out of a 12×12 sheet of acrylic.
I then peeled all of the paper off, sanded the parts to be glued, cleaned them with alcohol and assembled the model. I then finished the assembly with 3D printed parts.
