The project is coming along nicely. With quite a few changes based on the comments on the last post. What’s changed:
– Most of the fastening together will be done with screws and standoffs from the actual robot, so metal.
– Everything will be acrylic, though some will be painted.
– The weapon will be able to spin, though not functionally.

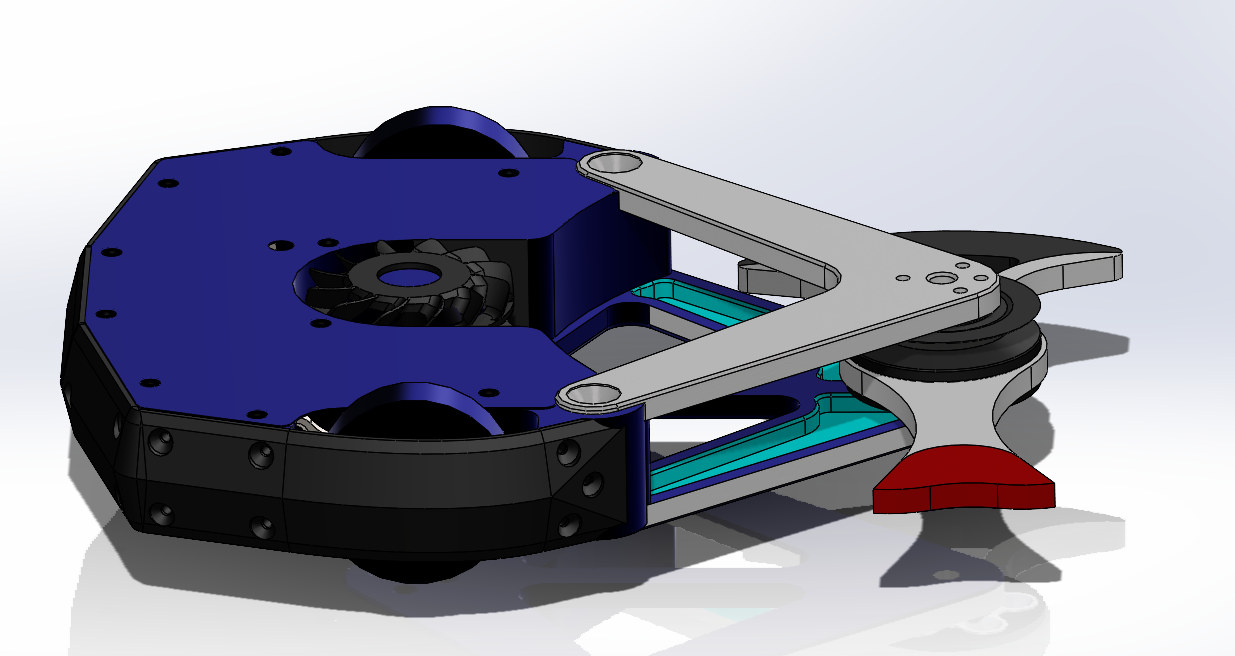

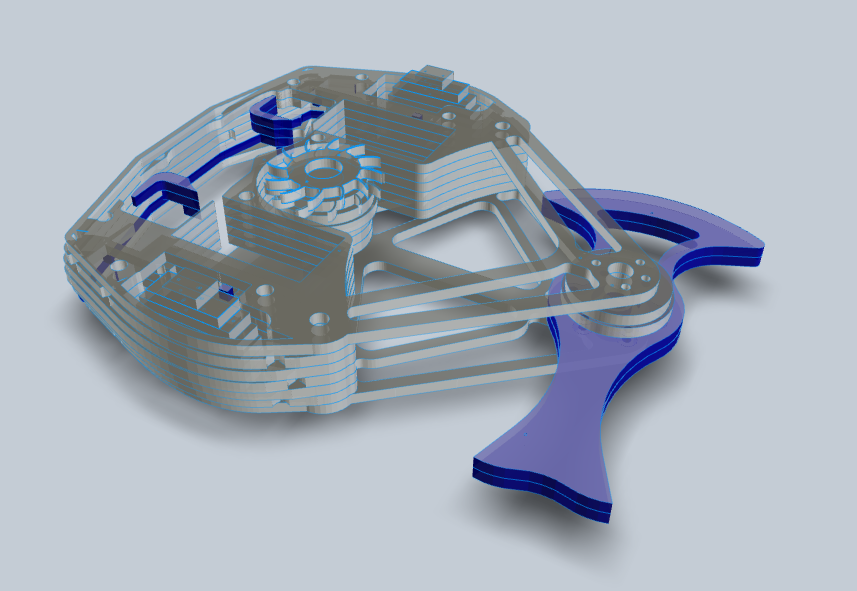

– I’d like the internal geometry to be visible from the outside, looking through the acrylic.
– Since the slicer wont slice my top and bottom plates, likely due to their thickness. The top and bottom plates will be .05″ spring steel.
Issues:
– I need a lot of acrylic for this.
– The slicer software makes the internal geometry floating even though the imported model has geometry under that. Not quite sure what’s causing this issue, the model was simplified.
– I might end up having to slice it myself in Solidworks. I’d like to avoid that, its very time consuming.

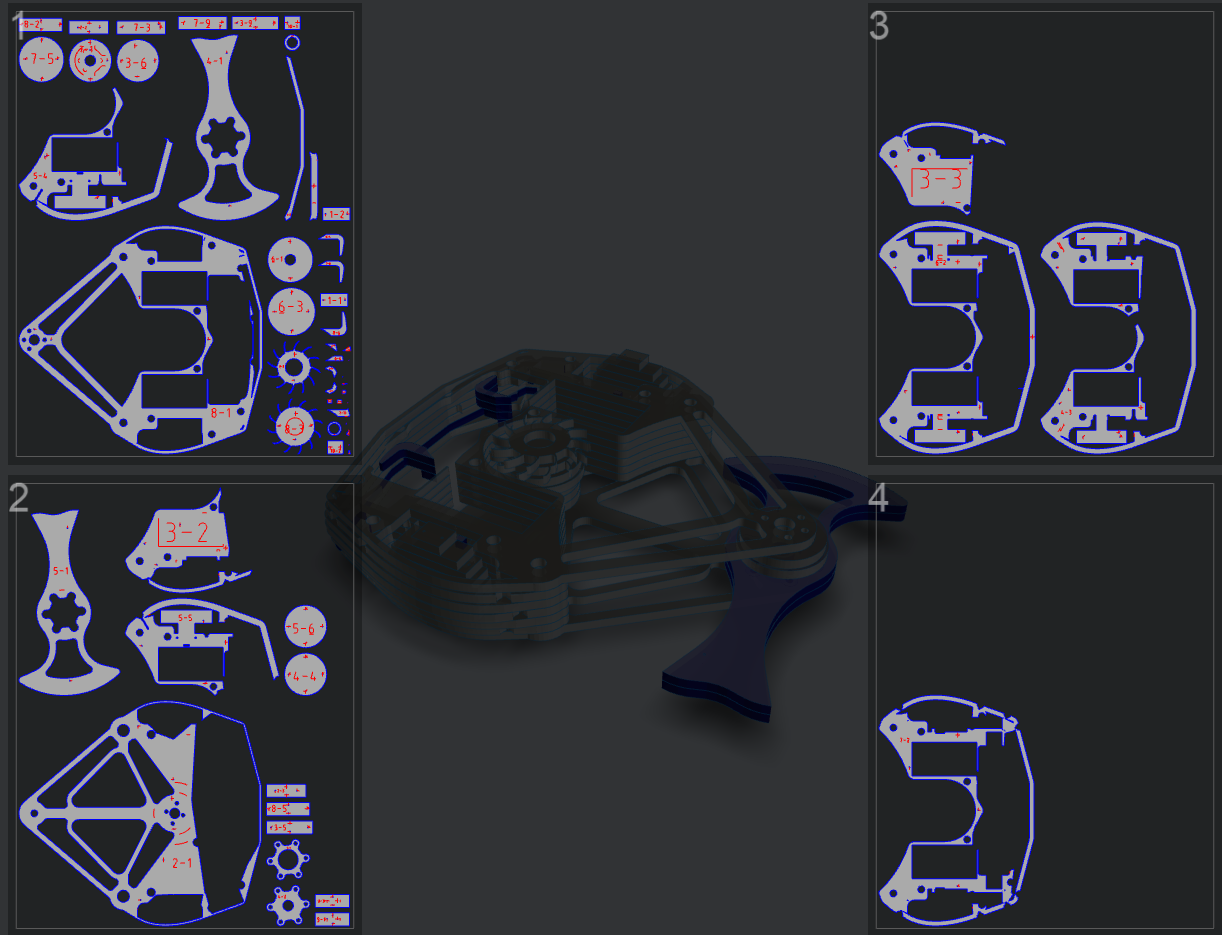

Cutting to start soon, once slicer cooperates. Each SVG will need some major cleaning in inkscape.
